10 mm 2 electrode probe
Small Mammal EEJ probe
Model 10MM2

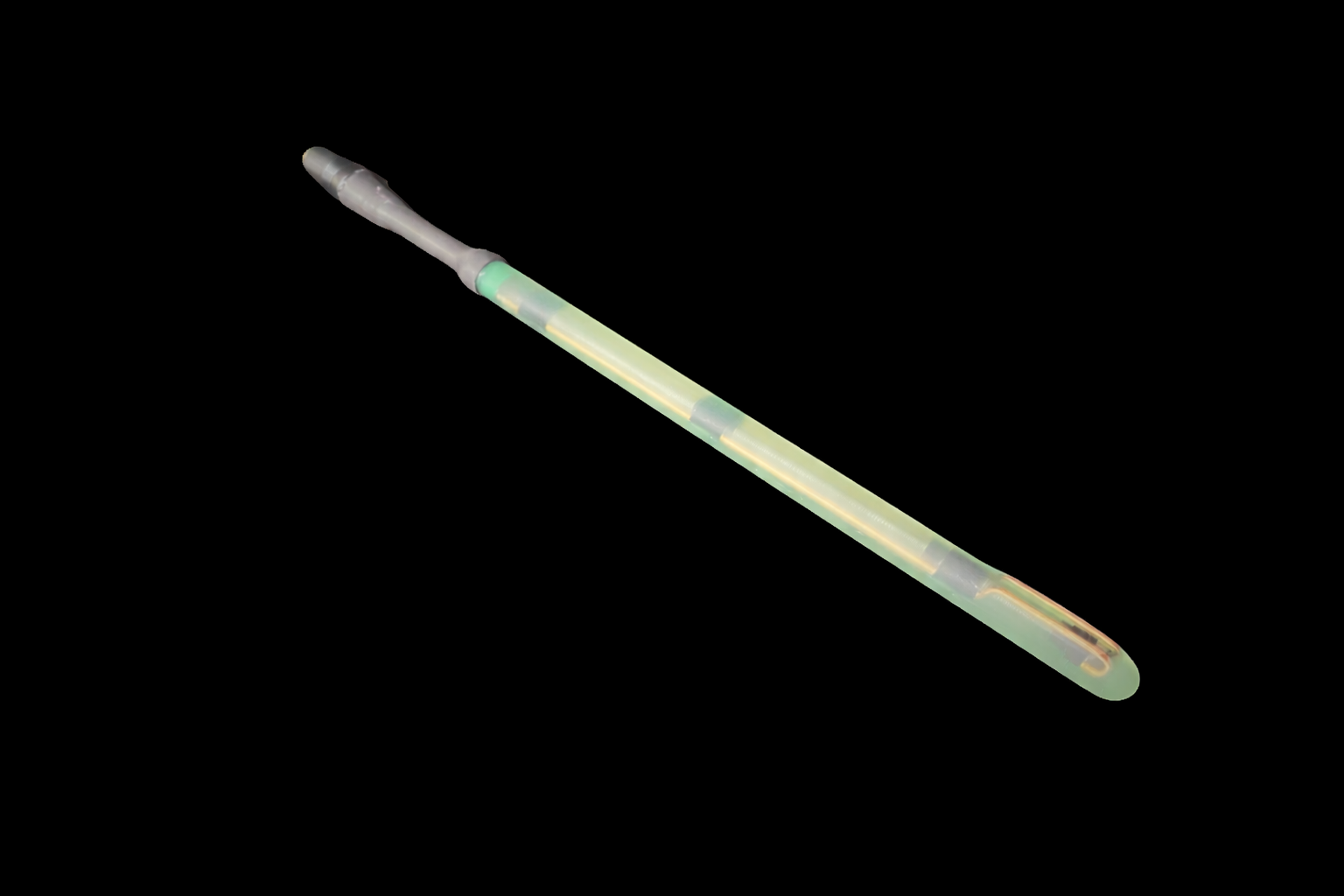

Precision electroejaculation probe for small mammal research. Probe features a polymer shell over a stainless steel shaft with integrated copper electrodes and a 2.1 mm power connector. Probe head diameter: 10 mm.
The 10MM2 probe is built for small mammal applications where precise electrode placement and repeatable response are critical. Its geometry supports stable positioning during procedures, allowing for consistent performance across uses.

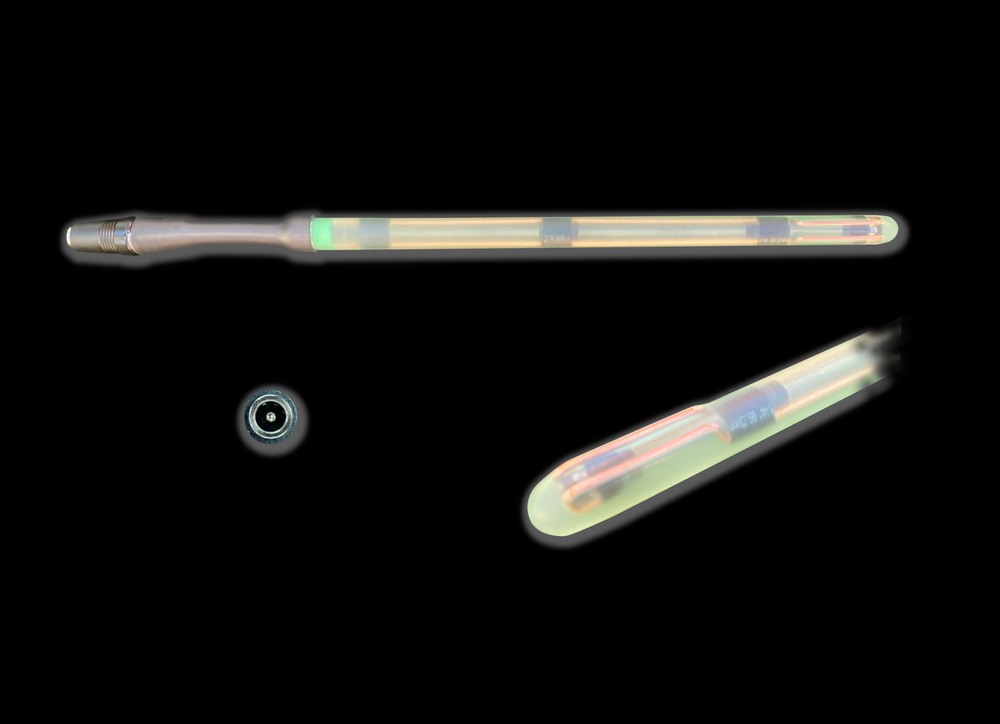

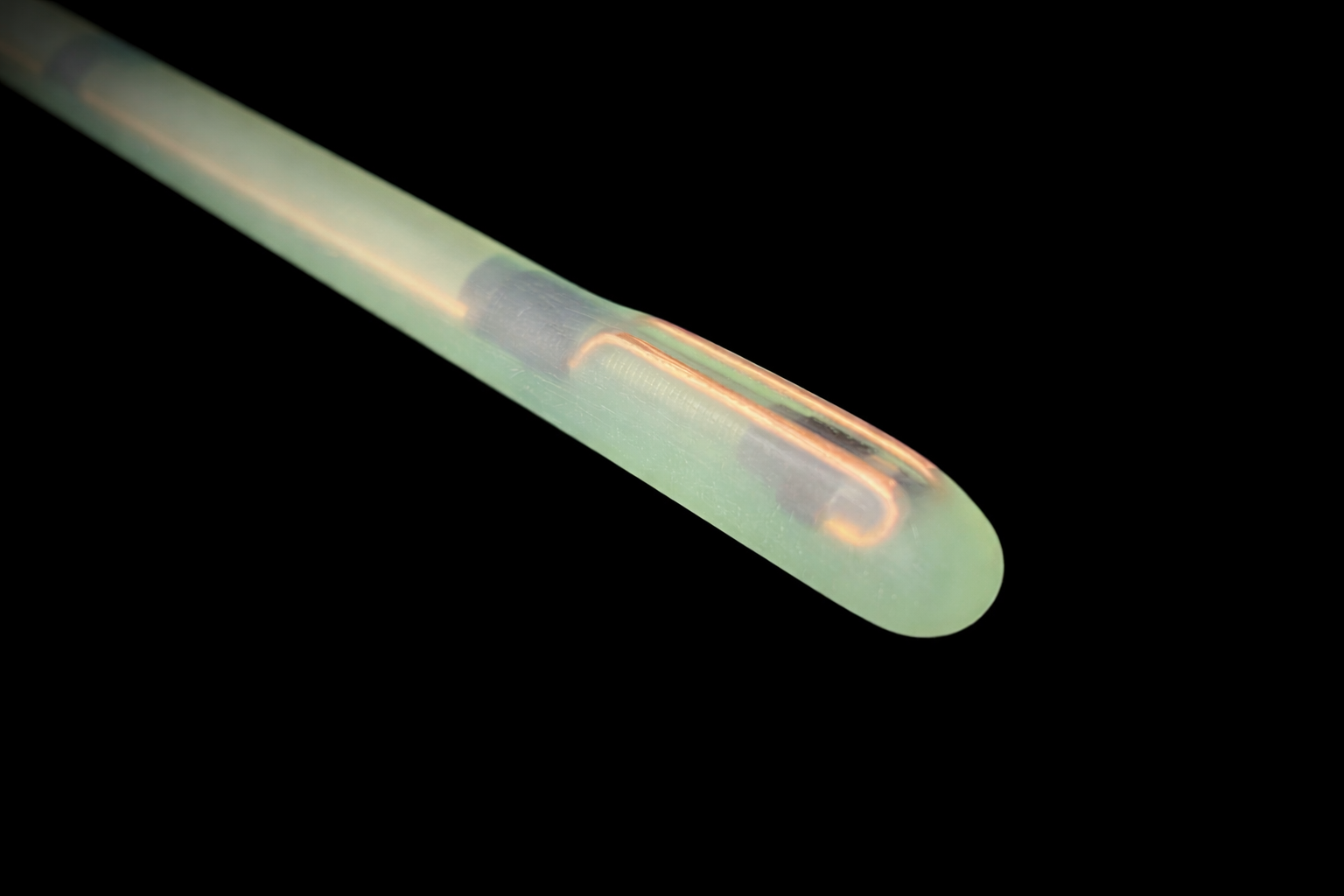

At the core of the design is a stainless steel internal shaft, providing rigidity and control, enclosed within a smooth, contoured polymer body that facilitates careful insertion. Two longitudinal copper electrodes are exposed at the probe head and run internally along the length of the probe, ensuring continuous contact throughout the active region. A three-electrode variant is also available in this size for applications requiring expanded contact configurations.
The probe is fitted with a 2.1 mm center pin jack for secure, consistent power delivery. It is waterproof to the connector interface and engineered for durability in both field and clinical environments.
