20 mm 3 electrode probe
Mammal EEJ probe
Model 20MM3

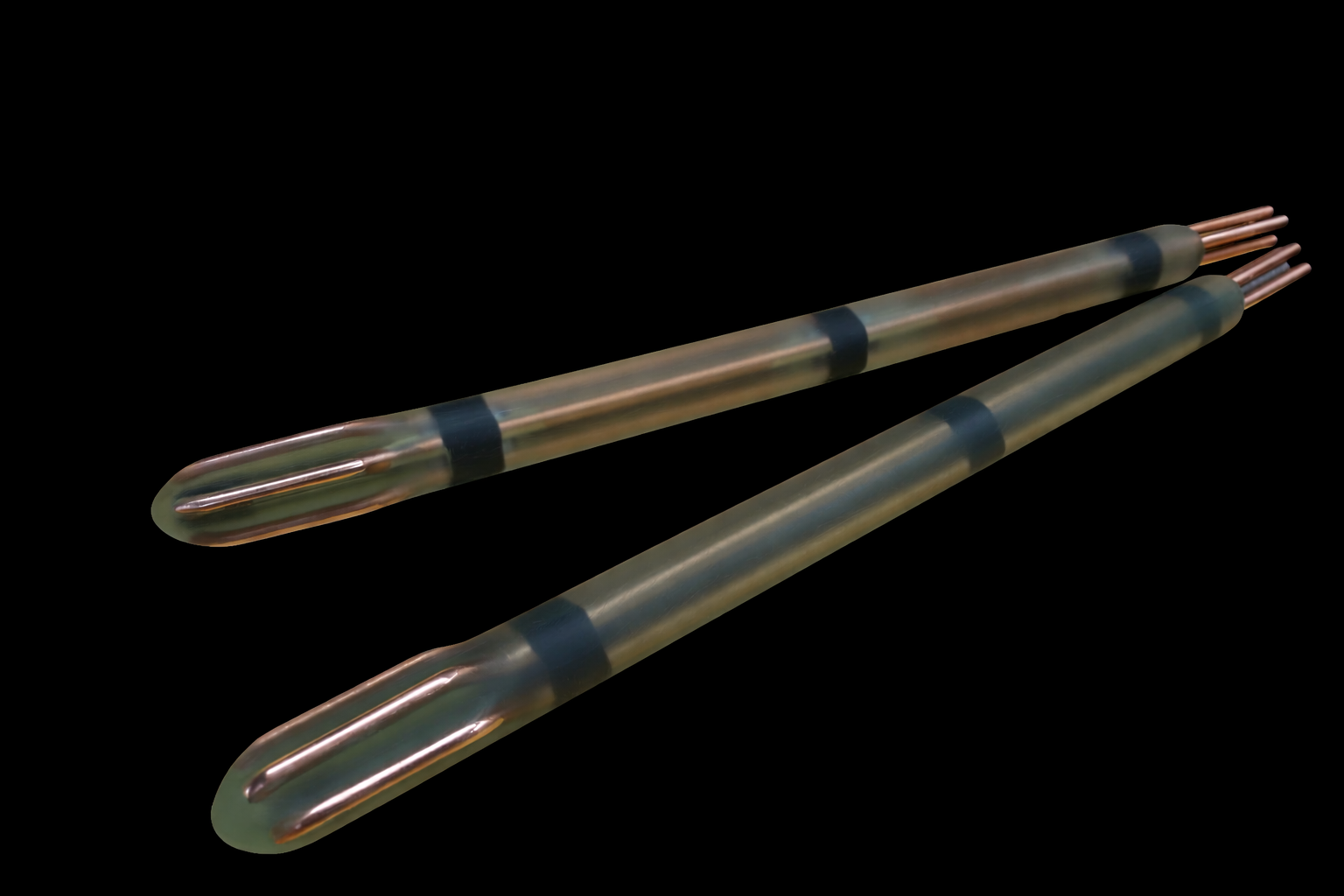

Precision electroejaculation probe for a range of small to medium-sized mammal research. Probe features a polymer shell over a stainless steel shaft with integrated copper electrodes and a 2.1 mm power connector. Probe head diameter: 20 mm.
The 20MM3 probe is suited for use across a range of mid-sized mammals, including species such as cheetahs, similarly sized canines, and small ungulates. Its dimensions and three-electrode configuration support precise internal contact placement and consistent response during electroejaculation procedures.

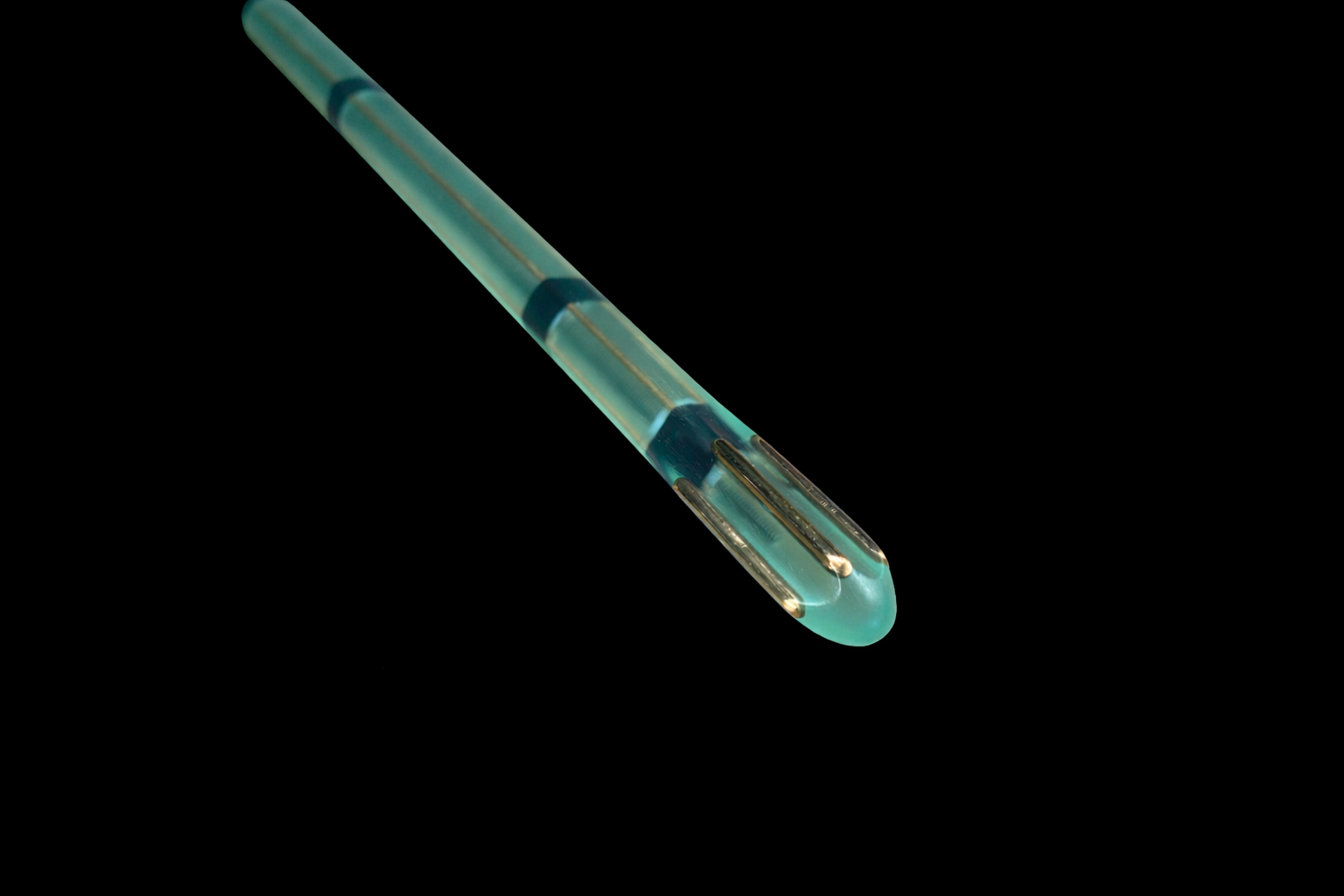

The probe body is formed from a contoured polymer shell over a stainless steel internal shaft, providing both controlled insertion and structural durability. At the probe head, three longitudinal copper electrodes are exposed and extend internally along the length of the device, ensuring continuous contact throughout the active region.
The unit is available with either a 2.1 mm center pin jack or an optional XLR connector, depending on system requirements. It is waterproof to the connector interface and designed for repeated use in both field and clinical environments.
