30 mm 3 electrode probe
Mammal EEJ probe
Model 30MM3

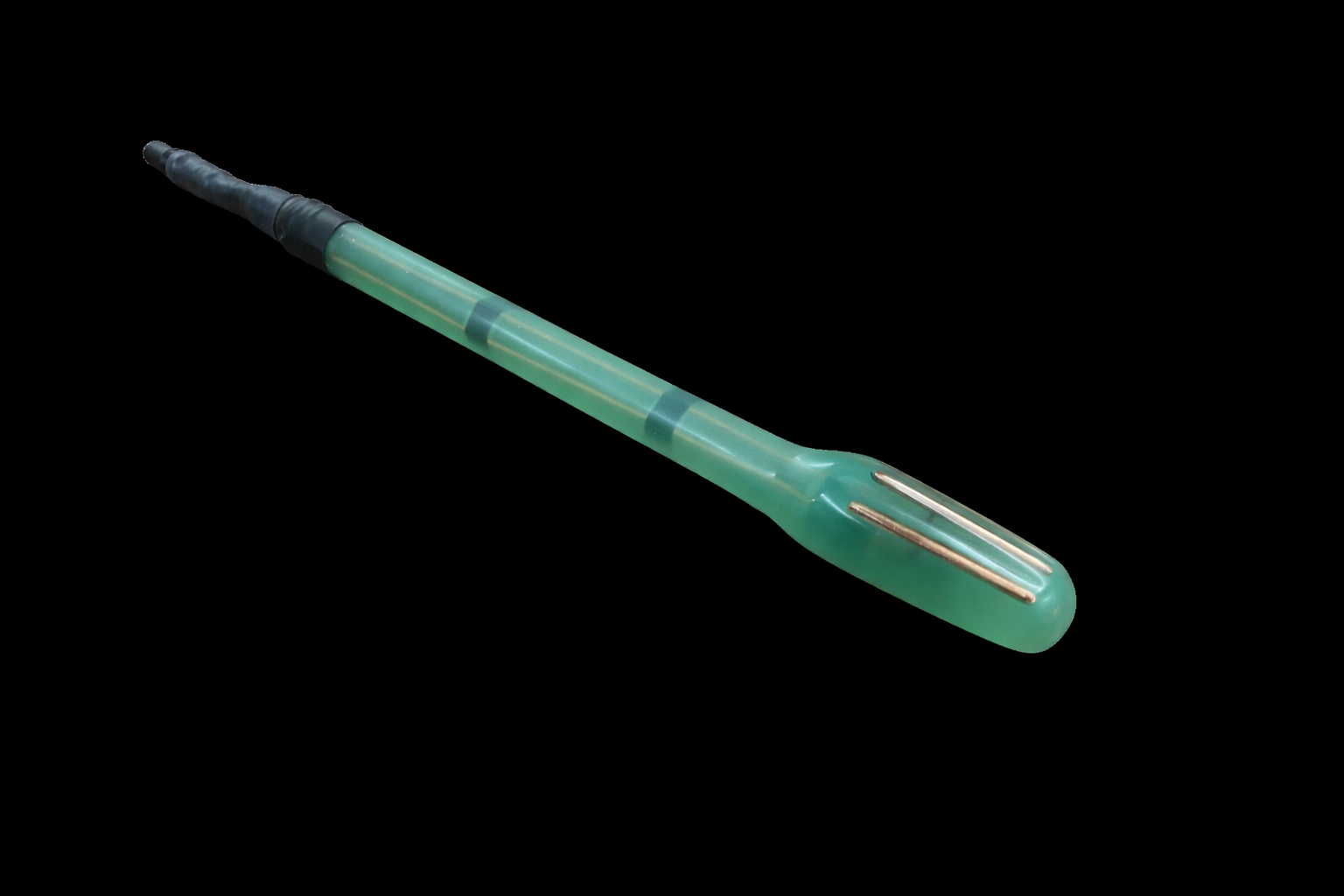

Precision electroejaculation probe for medium-sized mammal research. Probe features a polymer shell over a stainless steel shaft with integrated copper electrodes and a 2.1 mm power connector. Probe head diameter: 30 mm.
The 30MM3 probe is configured for medium-sized mammals, including species such as wolves, larger cat species, and medium-sized ungulates. Its increased diameter provides a stable interface for precise internal contact placement, supporting controlled positioning and consistent procedural response.

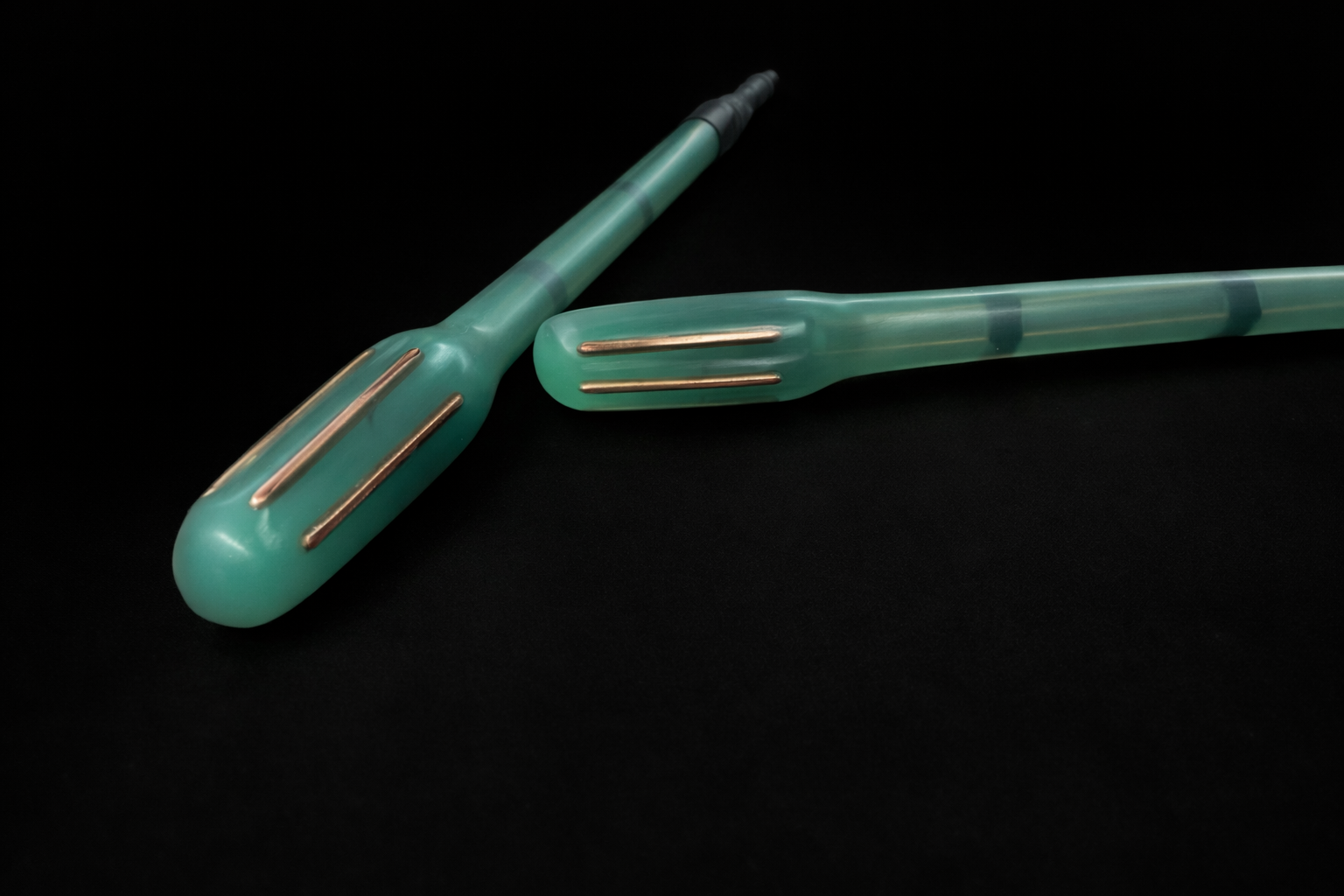

A stainless steel internal shaft provides rigidity along the full length of the probe, while the outer polymer shell is smoothly contoured to allow for measured, controlled insertion. Three longitudinal copper electrodes are exposed at the probe head and extend internally, maintaining continuous contact throughout the active region.

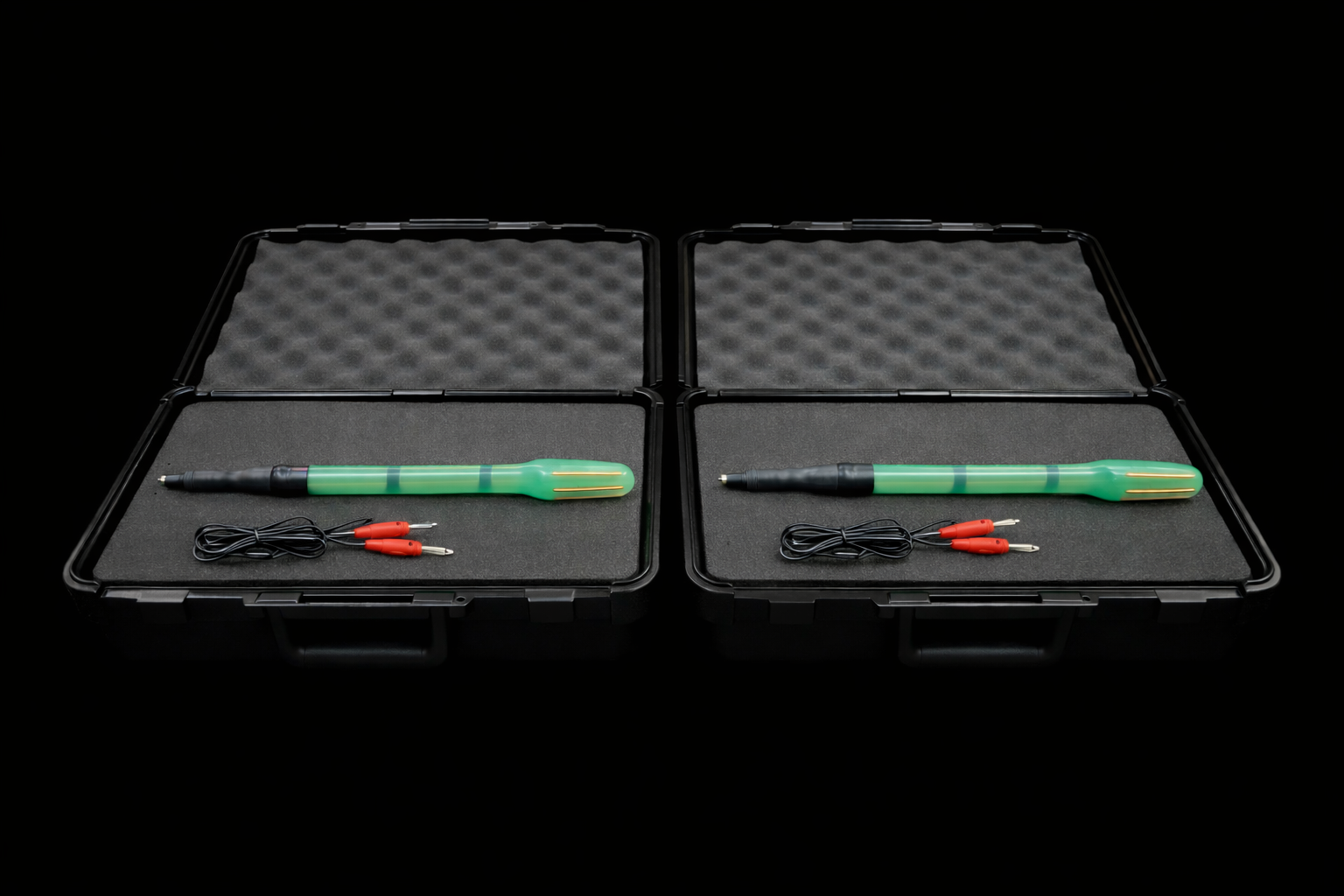

The probe can be fitted with either a 2.1 mm center pin jack or an optional XLR connector to match system requirements. It is waterproof to the connector interface and constructed for repeated use in both field and clinical environments.
