40 mm 3 electrode probe
Large Mammal EEJ probe
Model 40MM3

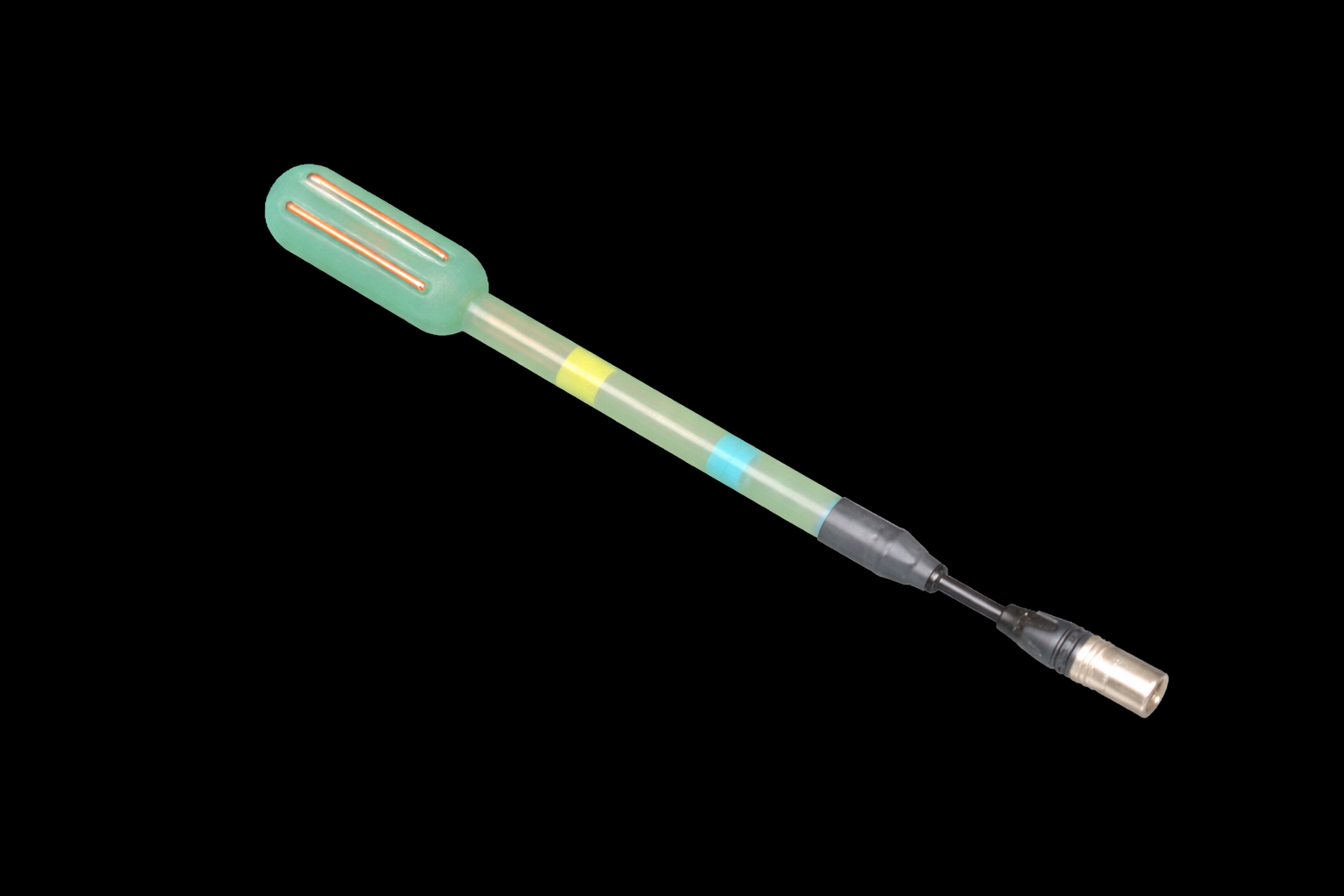

Precision electroejaculation probe for larger mammal research. Probe features a polymer shell over a stainless steel shaft with integrated copper electrodes and a 2.1 mm power connector. Probe head diameter: 40 mm.
The 40MM3 probe is intended for use in larger mammals, including species such as deer and antelope. Its diameter provides a broad and stable contact interface, supporting precise internal placement and consistent response during electroejaculation procedures.

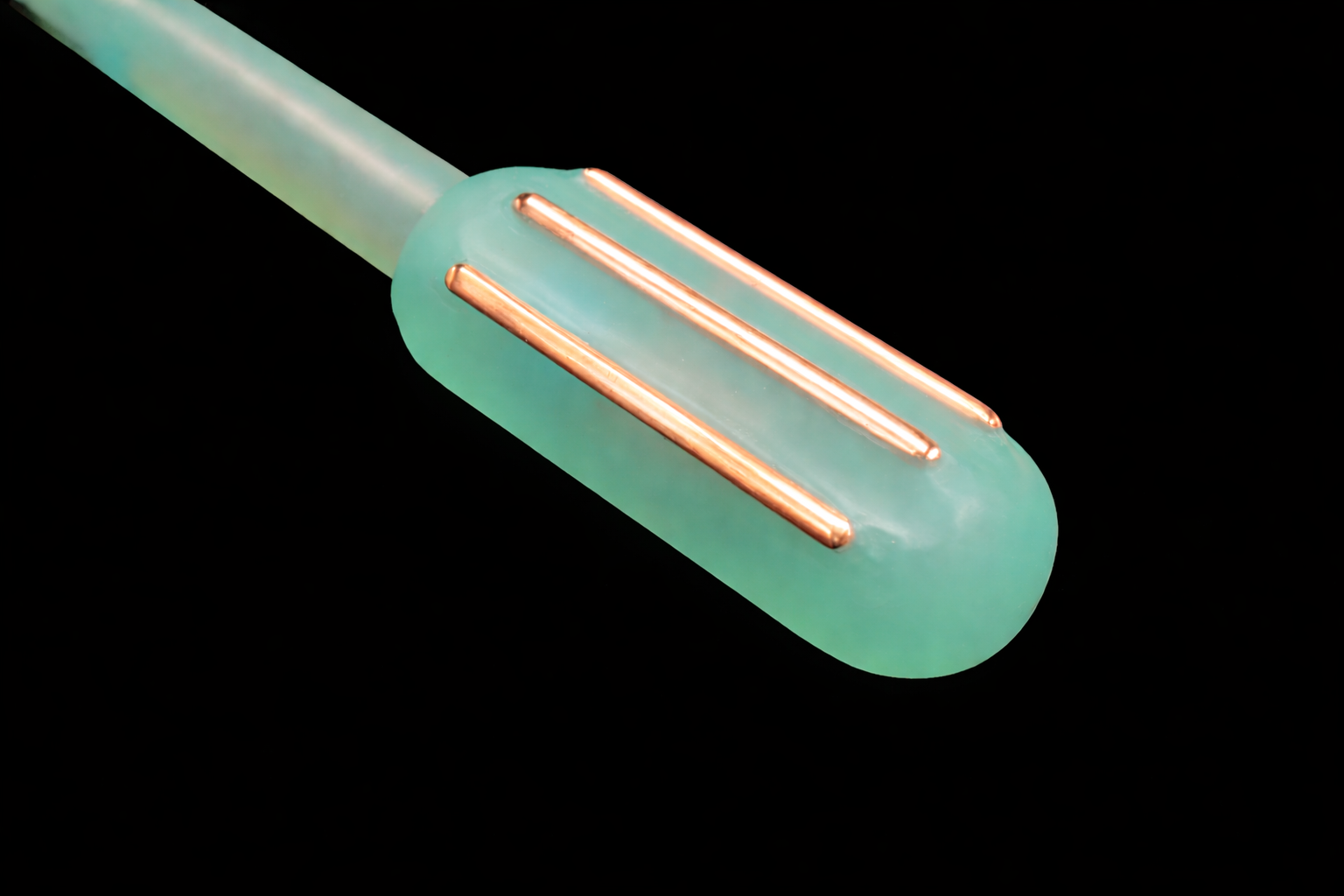

The probe is constructed with a stainless steel internal shaft for strength and alignment, encased in a smooth, contoured polymer shell that allows for controlled insertion. Three longitudinal copper electrodes are exposed at the probe head and extend internally along the length of the device, maintaining continuous contact across the active region.
Connection is provided via either a 2.1 mm center pin jack or an optional XLR connector, allowing compatibility with a range of control systems. The probe is waterproof to the connector interface and designed for repeated use in both field and clinical settings.
